Following our earlier part 1 article about Malware analysis for detecting IOC's
Let's continue our acquaintance with YARA rules, this time about the use of modules.
Conditions are used in all computer languages to determine whether a Boolean expression is true or false. The same is true for YARA rules, where conditions are used to check for certain expressions. In the
conditions section, conditions are defined.
Conditions can use one of the following operators:
and, or, not
>, <, >=, <=, ==, .=
+, -, *, \, %
&, |, <<, >>, ~, ^
Examples using conditions:
Sometimes, you might want to write an expression to check for a string or value at a certain offset, then this could be done by using the
at operator in the

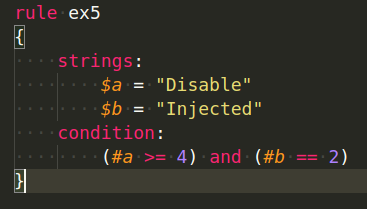

You might also wish to know whether a particular string was discovered in the file, but the search is based on how many times the string was found in the sample. The arithmetic operators could be used to do this:
What if you don't know where the string you're looking for is located? What if you want to find a string within a range of bytes? This might also be done with the
Another example is searching based on file size:
If you're going to run searches based on file sizes, bear in mind that you shouldn't use this condition when scanning files in memory because the file in memory won't be the same exact size as the file on disk, thus using the filesize directive on memory images is a terrible idea.
Before going on to expanding YARA rules using modules, I wanted to give one last example: searching for data at a given file offset or virtual address. This is dependent on whether you're scanning a file or a process in memory.
Functions available for reading are:
// 8-bit signed little-endian int8(<offset or virtual address>) // 8-bit unsigned little endian uint8(<offset or virtual address>) // 16-bit signed little-endian int16(<offset or virtual address>) // 8-bit unsigned little endian uint16(<offset or virtual address>) // 32-bit signed little-endian int32(<offset or virtual address>) // 32-bit unsigned little endian uint32(<offset or virtual address>) // 8-bit signed big-endian int8be(<offset or virtual address>) // 8-bit unsigned big-endian uint8be(<offset or virtual address>) // 16-bit signed big-endian int16be(<offset or virtual address>) // 16-bit unsigned big-endian uint16be(<offset or virtual address>) // 32-bit signed big-endian int32be(<offset or virtual address>) // 32-bit unsigned big-endian uint32be(<offset or virtual address>)
uint16(0) to check for the
2-bytes at the beginning which are for the
MZ signature, as seen in the example below:
YARA can be extended with the modules described below:
- PE - Creating more fine-grained rules for PE file by using attributes and features of the PE file format.
- ELF - Similar to PE, but for creating rules for
- Cuckoo - Creating rules based on behavioral data obtained from the Cuckoo sandbox.
- Magic - Using the file CLI output to create rules to detect file types (
- Hash - Calculate hashes for parts of your files and create signatures based on them.
- Math - Calculate certain values for parts of your files and create signatures based on them.
- dotnet - This module allows you to create more fine-grained rules for
.NETfiles by using attributes and features of the
- time - The Time module allows you to use temporal conditions in your YARA rules.
- Console - Allows you to log information during condition execution.
Although there are presently only nine modules available for use with YARA, this does not exclude you from creating your own and extending YARA with it.
In this article, we will only be covering the modules PE, Hash and Math. For others, please check the documentation found below.
First of all, in order to use a module in your rules, you need to import the module, as seen in the example below:
If you're familiar with Python, you'll see that it's fairly similar, with the exception that double quotes are required.
Let's start with the PE module, and our first example will be checking a file's PE timestamp, which is found at offset
0xF0. Even though it is no longer accurate and most likely does not represent the time when the PE file was created/modified, it is still a useful example to display:

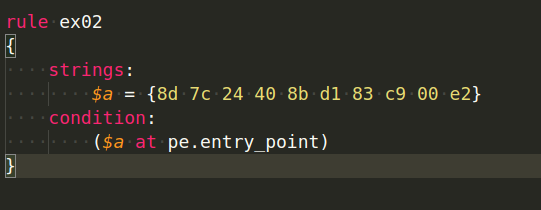

Next example, we are checking for a specific string at the Entry Point of the PE file:
What if you wanted to see how many sections there were? Very simple, as shown in the example below:
What if you wanted to check for a specific function being called from a DLL? Well check the example below then:
Check if the file is 32-bit or 64-bit using the machine type field as seen in the example:
In the example below we are checking in the version information of the PE file if it belongs to
Mosse Security or not:

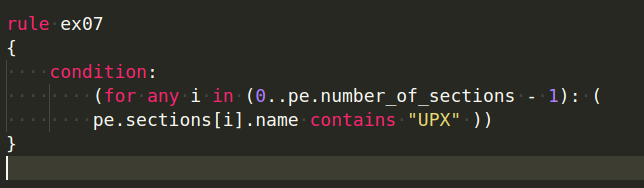

Let's say you want to see if UPX was used to pack a section. As shown in the sample below, we can scan all of the sections:
The hash module extends YARA’s capabilities to be able to scan for files with a specific hash value. We can use this module to calculate hashes using
The functions for calculating the hash use the following syntax:
HashFunction can be
sha256 once again.
They can now be used to generate hashes for strings in addition to calculating the hash value of a part of a file. The following is the syntax:
The same is true for
sha256, which take a string and return the hash value for it:
- Don't forget to import the
hashmodule in your code.
- The entire file is considered from offset zero to filesize.
- The hashes you're looking for must be in lowercase.
- Multiple hash functions can be used in the same rule. You are not limited to using just one hash function.

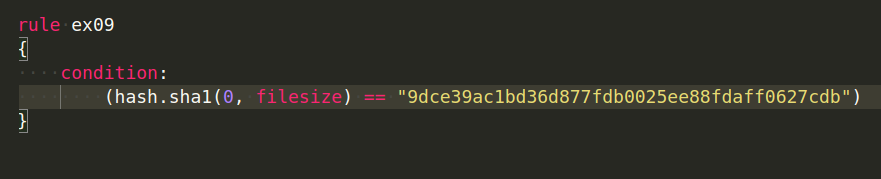

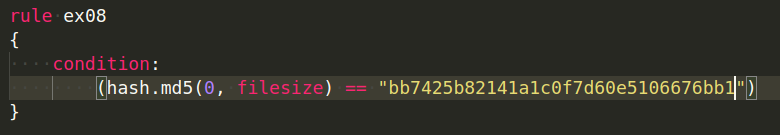

For example, you can use the same rule to look for
Math module will be the final module discussed, and it can be used to extend YARA by computing values from specific sections of the file.
Remember to include the following module:
Calculating the entropy of a file or a partition of a file is one of the most prevalent uses of the math module. As previously stated, the entropy can help you determine how much unpredictability is included in a file.
Obfuscation is occasionally used as a signal.
Remember that the entropy range is
8. The closer to
8, the more randomness there is (higher entropy). The syntax is comparable to that of the hash module.
Could be used to calculate a portion as seen in the following code:
or used to calculate the entropy for a string:
In our example below, we are searching for files that have an entropy higher than
There are other math functions that we recommend you check out. They could be found in the link

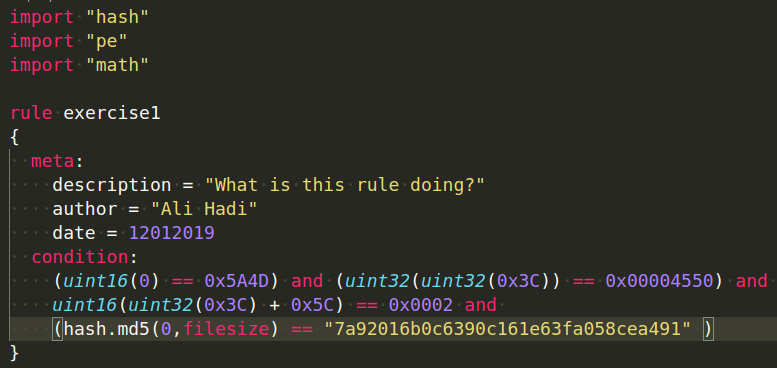

Try to figure out the purpose:
(uint16(0) == 0x5A4D)-> checking for the MZ Signature
(uint32(uint32(0x3C)) == 0x00004550)-> checking for the PE Signature
(uint16(uint32(0x3C)+0x5C) == 0x0002)-> checking if PE is a GUI
(hash.md5(0,filesize) == "7a92016b0c6390c161e63fa058cea491")-> checking for file hash that is equal to the one given
Below are some great articles written by Florian Roth that we recommend you read:
